پارت نامبر:WS-C3850-24S-S
تعداد پورتهای SFP:+ 24-1/10G SFP
Number of access points per switch/stack:100
قابلیت Stack:StackWise-480:yes, StackPower:yes, Total routed ports per 3850 stack:208, Stacking bandwidth:480 Gbps

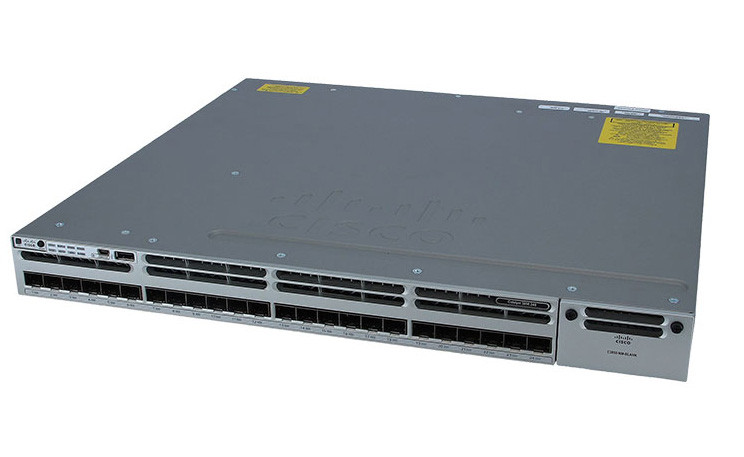

سوییچ مدیریتی ۲۴ پورت سیسکو مدل WS-C3850-24S-S
WS-C3850-24S-S
برند:cisco
ناموجود
دیدن محصولات مرتبطمشخصات
پارت نامبر
WS-C3850-24S-S
تعداد پورتهای SFP
+ 24-1/10G SFP
Number of access points per switch/stack
100
قابلیت Stack
StackWise-480:yes, StackPower:yes, Total routed ports per 3850 stack:208, Stacking bandwidth:480 Gbps
تعداد VLAN قابل پشتیبانی
4,000
DRAM پیش فرض
4GB (8 GB on 48-port SFP+ model)
Total Switched Virtual Interfaces (SVIs)
1000
Number of wireless clients per switch/stack
2000
Wireless bandwidth per switch
Up to 40 Gbps on 48-port Gigabit Ethernet model-Up to 20 Gbps on 24-port Gigabit Ethernet model
Flash memory
2GB (4 GB on 12-port and 24-port SFP+ models, 8 GB on 48-port SFP+ model)
Jumbo frame
9198bytes
Supported Aironet access point series
3600, 3500, 2600, 1600, 1260, 1140, 1040
توضیحات
Switching capacity
176 Gbps on 48-port Gigabit Ethernet model, 92 Gbps on 24-port Gigabit Ethernet model, 68 Gbps on 12-port Gigabit Ethernet model, 640 Gbps on 24-port Multigigabit Ethernet model*, 472 Gbps on 48-port Multigigabit Ethernet model, 1280 Gbps on 48-port 10 Gigabit Ethernet SFP+ model*, 640 Gbps on 24-port 10 Gigabit Ethernet SFP+ model*, 320 Gbps on 12-port 10 Gigabit Ethernet SFP+ model*
FNF entries
48,000 flow on 48-port Gigabit Ethernet models, 24,000 flows on 12-port and 24-port Gigabit Ethernet models, 96,000 flows on 48-port 10 Gigabit Ethernet SFP+ model, 48,000 flows on 24-port 10 Gigabit Ethernet SFP+ model, 24,000 flows on 12-port 10 Gigabit Ethernet SFP+ model
MTBF hours
307,990
Vibration
Operating: 0.41Grms from 3 to 500Hz with spectral break points of 0.0005 G2/Hz at 10Hz and 200Hz 5dB/octave roll off at each end., Nonoperating: 1.12Grms from 3 to 500Hz with spectral break points of 0.0065 G2/Hz at 10Hz and 100Hz 5dB/octave roll off at each end.
Standards
IEEE 802.1as RMON I and II standards, IEEE 802.1s SNMPv1, SNMPv2c, and SNMPv3, IEEE 802.1w, IEEE 802.11, IEEE 802.1x, IEEE 802.1x-Rev, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bz, IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports, IEEE 802.1D Spanning Tree Protocol, IEEE 802.1p CoS prioritization, IEEE 802.1Qat Stream Reservation Protocol, IEEE 802.1Qav, IEEE 802.1Q VLAN, IEEE 802.3 10BASE-T specification, IEEE 802.3u 100BASE-TX specification, IEEE 802.3ab 1000BASE-T specification, IEEE 802.3z 1000BASE-X specification
Safety certifications
UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, NOM (obtained by partners and distributors)
Electromagnetic emissions certifications
47CFR Part 15 (CFR 47) Class A (FCC Part 15 Class A), AS/NZS CISPR22 Class A, CISPR22 Class A, EN55022 Class A, ICES003 Class A, VCCI Class A, EN61000-3-2, EN61000-3-3, KN22 Class A, KCC, CNS13438 Class A, EN55024, CISPR24, KN24
Environmental
Reduction of Hazardous Substances (ROHS) 5
Noise specifications
Office Product Spec: 48dBA at 30°C (refer to ISO 7779)
